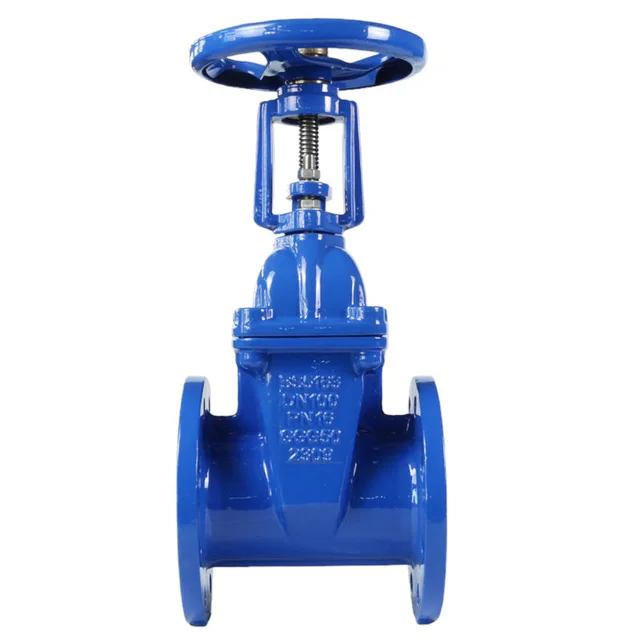

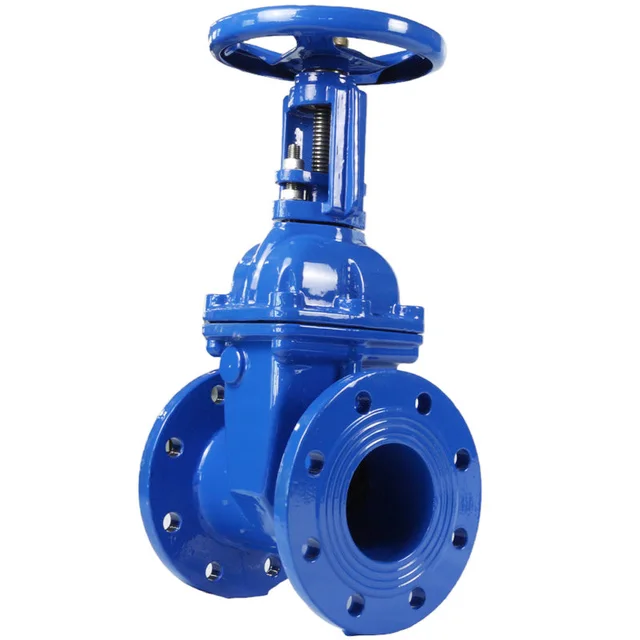

Rising Stem Resilient Seated Gate Valve

Configured to your size, pressure and application

Rising Stem Resilient Seated Gate Valve

Product Facts

  • Size2 in; 2.5 in; 3 in; 4 in; 5 in; 6 in; 8 in; 10 in; 12 in; 14 in; 16 in; 18 in; 20 in; 24 in; 28 in; 32 in; 36 in; 40 in; 48 in
  • PressurePN16 (200PSI)
  • MaterialDuctile iron
  • ConnectionFlanged
Project-specific documentationTell us which inspection records or certificates your project requires.

Certification and final configuration are confirmed for the quoted product.

Request a QuoteCompare Models

Download RFQ ChecklistFor your valve list, drawings and document requirements.

Product specifications

Specifications

Size
2 in; 2.5 in; 3 in; 4 in; 5 in; 6 in; 8 in; 10 in; 12 in; 14 in; 16 in; 18 in; 20 in; 24 in; 28 in; 32 in; 36 in; 40 in; 48 in
Pressure
PN16 (200PSI)
Material
Ductile iron
Connection
Flanged

Published values describe the available catalogue reference. Final configuration is confirmed against the RFQ.

Before you request a quote

Specify your rising stem gate valve

This rising stem resilient seated gate valve reference lists ductile iron, a flanged connection and a PN16 designation. Use this page when the project calls for the rising-stem arrangement, and provide the operating-access and installation-space requirements with the valve schedule. Confirm flange and face-to-face dimensions, seat compound and required component materials in the RFQ. BAODUN reviews the final configuration and document requirements before quotation.

Review catalogue specifications

RFQ parameters to send

  • Rising stem requirement, resilient-seat construction and nominal size
  • Required pressure designation and governing project standard
  • Flange standard, facing, drilling and face-to-face requirement
  • Required operating access, installation orientation and available space
  • Body, gate, stem, seat, trim and coating requirements
  • Medium, working pressure and temperature; required operating method
  • Quantity, destination, drawings and exact inspection, test and certificate requirements

Mark unknown fields for confirmation. Final configuration and documents are confirmed in the quotation.

Request Technical Review

Procurement questions

How should I specify the required stem arrangement?

Identify rising stem on the RFQ line and include the project drawing or available operating space. A non-rising stem version is listed separately; do not carry its dimensions or configuration into this quotation without review.

Does resilient seated confirm the seat compound or coating?

The product name identifies resilient-seat construction, but this record does not specify the seat compound or coating. State each material and coating requirement, along with the medium, pressure and temperature, for confirmation.

Which documents should accompany the enquiry?

Attach the valve schedule or drawing when available. List the required dimensional drawings, material records, inspection or test reports and certificates separately so their availability can be checked against the offered configuration.

Procurement Summary

Catalogue reference: listed material ductile iron; connection flanged; PN16 designation. The quoted configuration, dimensions and required documents are confirmed against the RFQ.

Compare each reference against your project requirements; final suitability is confirmed for the quoted item.

Document Status

Required documents are confirmed for the quoted product and project requirements.
