Gate Valves

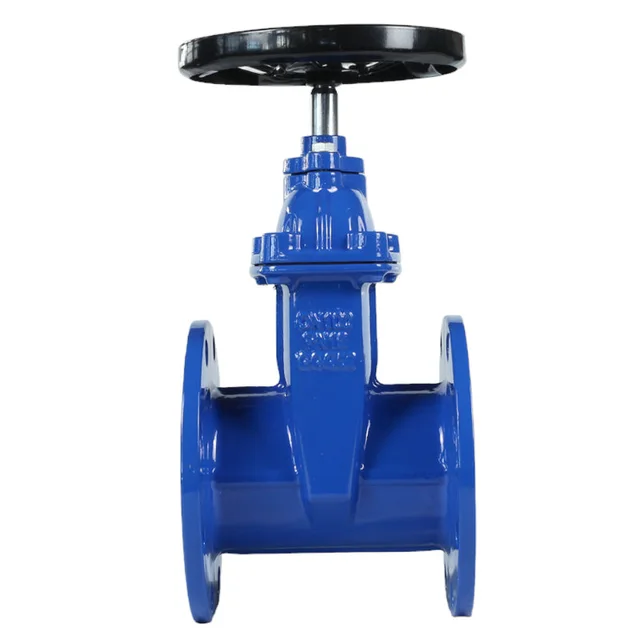

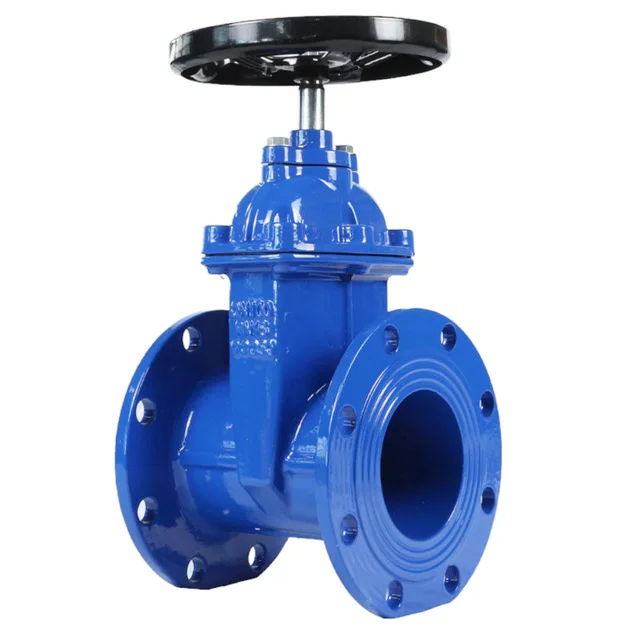

Non-Rising Stem Resilient Seated Gate Valve

Configured to your size, pressure and application

Non-Rising Stem Resilient Seated Gate Valve

Product Facts

  • Size2 in; 2.5 in; 3 in; 4 in; 5 in; 6 in; 8 in; 10 in; 12 in; 14 in; 16 in; 18 in; 20 in; 24 in; 28 in; 32 in; 36 in; 40 in; 48 in
  • PressurePN16 (200 PSI)
  • MaterialDuctile iron
  • ConnectionFlanged
Project-specific documentationTell us which inspection records or certificates your project requires.

Certification and final configuration are confirmed for the quoted product.

Request a QuoteCompare Models

Download RFQ ChecklistFor your valve list, drawings and document requirements.

Product specifications

Specifications

Size
2 in; 2.5 in; 3 in; 4 in; 5 in; 6 in; 8 in; 10 in; 12 in; 14 in; 16 in; 18 in; 20 in; 24 in; 28 in; 32 in; 36 in; 40 in; 48 in
Pressure
PN16 (200 PSI)
Material
Ductile iron
Connection
Flanged

Published values describe the available catalogue reference. Final configuration is confirmed against the RFQ.

Before you request a quote

Specify your non-rising stem gate valve

This non-rising stem resilient seated gate valve reference lists ductile iron, a flanged connection and a PN16 designation. Confirm the required stem arrangement before comparing models, then send the flange details, face-to-face requirement and available operating access. Identify the required seat compound, coating and component materials in your RFQ. The proposed configuration and any project-specific approvals or documents are confirmed for the quoted item.

Review catalogue specifications

RFQ parameters to send

  • Non-rising stem requirement, resilient-seat construction and nominal size
  • Required pressure designation and project standard
  • Flange standard, facing, drilling and face-to-face dimension
  • Body, gate, stem, seat, trim and coating requirements
  • Medium, working pressure and temperature, installation orientation and operating access
  • Required manual or actuated operation and relevant assembly details
  • Quantity, destination and line-specific drawings, test records, certificates or approvals

Mark unknown fields for confirmation. Final configuration and documents are confirmed in the quotation.

Request Technical Review

Procurement questions

Which details distinguish this reference from the rising-stem version?

This reference is named non-rising stem. BAODUN also lists a separate rising-stem resilient seated gate valve. State the required arrangement and available operating space; compare dimensions, connections and the full project specification before selecting between them.

Is a particular seat compound or water-service approval confirmed?

This page does not identify the seat compound or establish a water-service approval. Include the required compound, medium-contact requirements, coating and exact approval or certificate in the RFQ for confirmation.

Can matching size and PN16 be used to confirm a replacement?

Also compare the flange standard, drilling, face-to-face dimensions, stem arrangement, component materials, operating method and service conditions. Attach the existing drawing or project valve schedule when available.

Procurement Summary

Catalogue reference: listed material ductile iron; connection flanged; PN16 designation. The quoted configuration, dimensions and required documents are confirmed against the RFQ.

Compare each reference against your project requirements; final suitability is confirmed for the quoted item.

Document Status

Required documents are confirmed for the quoted product and project requirements.
