Ductile Iron Y-Strainer
Configured to your size, pressure and application
Product Facts
- PressurePN16
- ConnectionFlanged
Certification and final configuration are confirmed for the quoted product.
Download RFQ ChecklistFor your valve list, drawings and document requirements.
Product specifications
Specifications
- Pressure
- PN16
- Connection
- Flanged
Published values describe the available catalogue reference. Final configuration is confirmed against the RFQ.
Before you request a quote
Specify the strainer and screen together
The BAODUN ductile iron Y-strainer reference lists a flanged connection and a PN16 designation. Define the screen alongside the piping interface: send the required pipe size, flange standard, screen opening and screen material. Include the medium, temperature, pressure and expected debris, plus the available space for screen removal. The proposed size, screen configuration, installation details and documents are confirmed in the quotation.
Review catalogue specificationsRFQ parameters to send
- Nominal pipe size, quantity and required ductile iron grade
- Pressure designation, actual working pressure and temperature
- Flange standard, facing, drilling and available installation length
- Required screen perforation or mesh and screen material
- Medium, expected debris and project-specific pressure-loss requirement, if any
- Installation orientation, drain requirements and screen-removal clearance
- Destination and required drawings, material records, test reports or certificates
Mark unknown fields for confirmation. Final configuration and documents are confirmed in the quotation.
Procurement questions
Which screen opening or mesh is included?
No screen opening, mesh or screen material is confirmed on this reference page. State the required perforation or mesh and screen material so the quotation can identify the proposed screen clearly.
Which sizes and ductile iron grades are published?
The product name identifies ductile iron, while the specification table lists PN16 and a flanged connection. This record does not publish a size range or material grade. Send your required nominal size and grade for confirmation.
What installation and service details should be checked?
Provide the flange standard, available installation length, orientation, drain requirements and access for screen removal. Describe the fluid, temperature and expected debris, and request pressure-loss information for the proposed size if your project needs it.

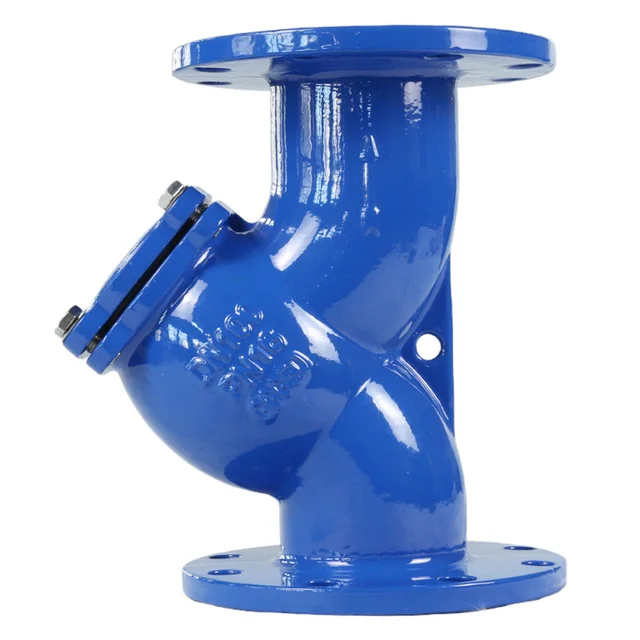

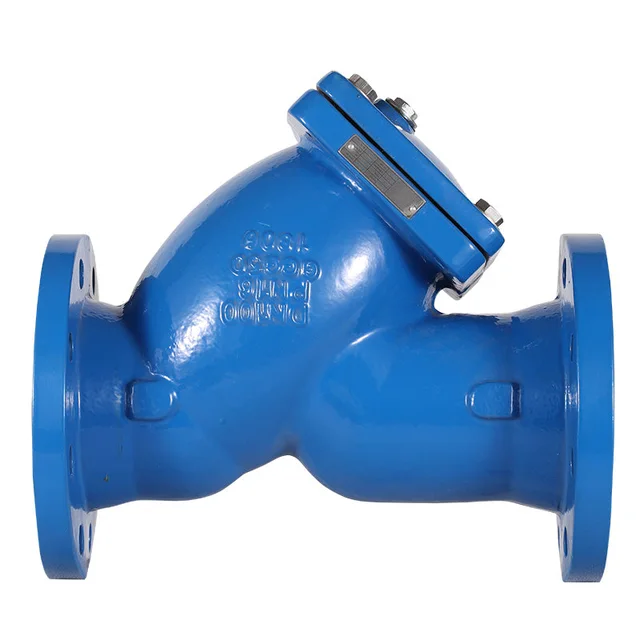

Product Gallery
Additional reviewed product views for this exact product record.
Procurement Summary
Catalogue reference: connection flanged; PN16 designation. The quoted configuration, dimensions and required documents are confirmed against the RFQ.
Document Status
Required documents are confirmed for the quoted product and project requirements.
