DIN Cast Iron Globe Valve
Configured to your size, pressure and application
Product Facts
- Size2 in; 2.5 in; 3 in; 4 in; 5 in; 6 in; 8 in; 10 in; 12 in; 14 in
- PressurePN16
- MaterialGrey cast iron
- ConnectionFlanged
Certification and final configuration are confirmed for the quoted product.
Download RFQ ChecklistFor your valve list, drawings and document requirements.
Product specifications
Specifications
- Size
- 2 in; 2.5 in; 3 in; 4 in; 5 in; 6 in; 8 in; 10 in; 12 in; 14 in
- Pressure
- PN16
- Material
- Grey cast iron
- Connection
- Flanged
Published values describe the available catalogue reference. Final configuration is confirmed against the RFQ.
Before you request a quote
Check your DIN globe valve requirements
This DIN cast iron globe valve reference lists grey cast iron, a flanged connection and a PN16 designation. Individual catalogue sizes are listed from 2 in to 14 in. To compare it with a project specification or an existing installation, send the exact DIN designation and edition required, the mating flange details and the face-to-face dimension. Include the medium, working pressure and temperature so the proposed configuration can be reviewed before quotation.
Review catalogue specificationsRFQ parameters to send
- Required nominal size and quantity, checked against the listed catalogue sizes
- Exact DIN or other project standard designation and edition
- Required pressure designation, actual working pressure and temperature
- Flange standard, facing, drilling, face-to-face dimension and flow direction
- Required material grades and component schedule, including trim where specified
- Medium and existing installation drawing or project data sheet, if available
- Destination and the specific drawings, reports, certificates or inspection requirements
Mark unknown fields for confirmation. Final configuration and documents are confirmed in the quotation.
Procurement questions
Does DIN in the product name establish a specific standard?
The product name includes DIN, but the specification table does not identify a DIN standard number or edition. State the exact product, dimensional and flange standards required by your project so they can be checked separately.
Which material and connection are published?
The published fields identify grey cast iron and a flanged connection. The page does not provide a complete component material schedule. Include the required body grade, disc, stem and seat details where specified by the project.
What should I send when replacing an existing globe valve?
Send the nominal size, flange standard and drilling, face-to-face dimension, flow direction, medium, working pressure and temperature, plus the existing drawing if available. Required drawings, reports and certificates should be listed separately for confirmation.

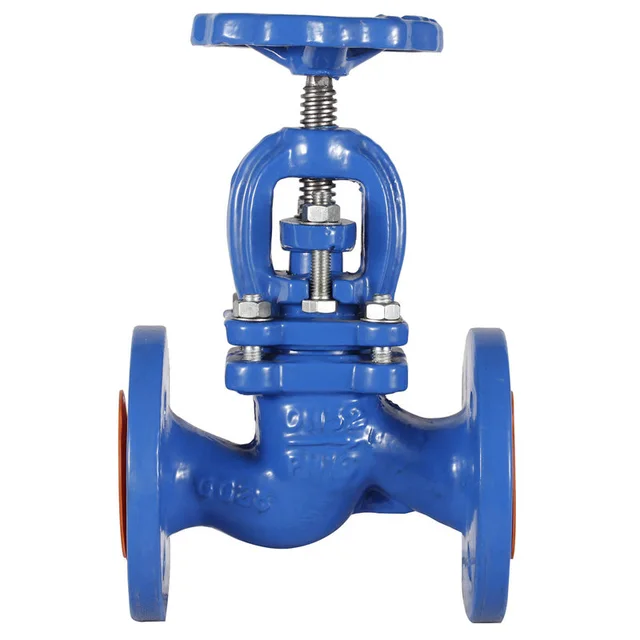

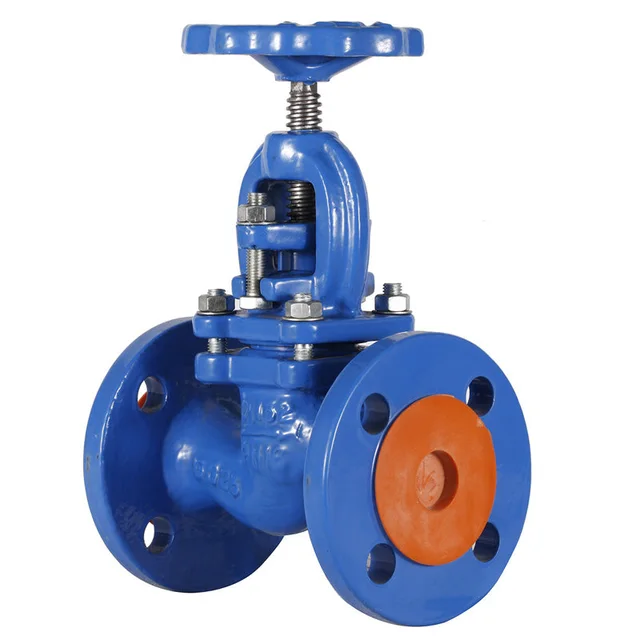

Product Gallery
Additional reviewed product views for this exact product record.
Procurement Summary
Catalogue reference: listed material grey cast iron; connection flanged; PN16 designation. The quoted configuration, dimensions and required documents are confirmed against the RFQ.
Document Status
Required documents are confirmed for the quoted product and project requirements.
